Reclosers

Fault Clear Auto Reclosers from Sunwa

Reclosers

FAULT CLEAR® Auto Recloser is deployed in the overhead power distribution line as a protection device, and its functions and performance are tested in accordance with IEEE C37.60 / IEC 62271-111 at a third-party laboratory. Togami Electric has experiences in power utility business by supplying switches over 90 years.

Features

Interchangeability

  • FAULT CLEAR can replace currently installed reclosers on the utility poles. Simply disconnect the control cable from the installed recloser, and connect to FAULT CLEAR.
  • FAULT CLEAR can be used as a standard three-phase or Triple/Single recloser. The recloser ratings and construction apply to both applications for a more robust product and long life.

Compatibility

  • FAULT CLEAR can be connected with a SEL-651 R2 controller through a standard 32-pin control cable for three-phase or Triple/Single application. The single phase FAULT CLEAR unit is compatible with the SEL-351 RS controller with a 10-pin control cable.

Enhancing Reliability In Grid Operation

  • FAULT CLEAR consists of three independent solid dielectric interrupters that enable operation by phase. Single phase operation on a three phase system increases reliability for the overhead distribution grid operation.

Construction

  • FAULT CLEAR has 6 voltage sensors and 3 current sensors built in.
  • FAULT CLEAR is designed to have long service life by selecting reliable materials and parts.
  • Bushings are made of an epoxy body with silicone sheds for high UV environments.
  • Recloser frame and mounting bracket are made from aluminum for use in high industrial pollution and salt-spray environments.

Fault Clear Auto Reclosers from Sunwa

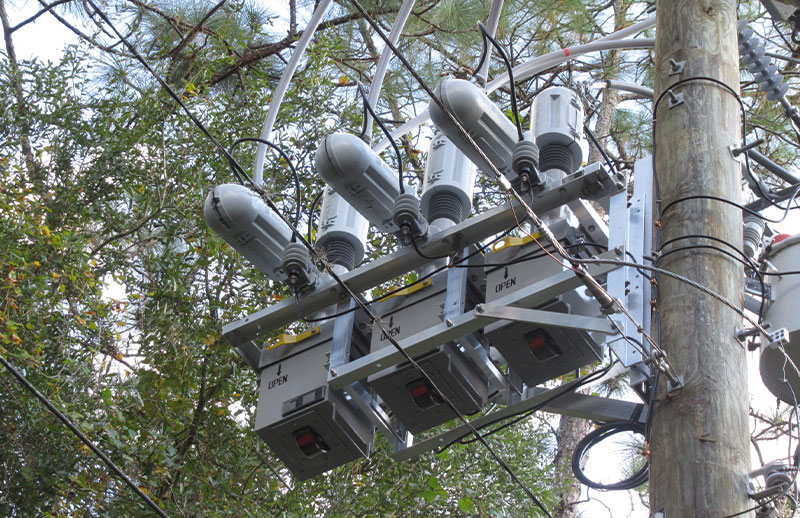

Workman on utility pole

Technical Specifications

Triple-Single and Single-Phase

Item Ratings
Rated voltage 27kV
Rated current 800A (continuous)
Rated frequency 60Hz
Rated power frequency withstand voltage 60kV
Lighting impulse withstand voltage 150kV
Rated short time withstand current 16kA
Rated short-circuit breaking current 16kA
Rated short-circuit making current 41.6kA
Operation mechanism Auto open & close; manual open & lockout
Insulation medium Solid dielectric
Arc extinction medium Vacuum
Current sensor Ratio 1000:1; built in solid dielectric
Voltage sensor Ratio 10000:1; built in solid dielectric; 3 source & 3 load side
Standard ANSI/IEEE C37.60
Pollution level Class IV (IEC standards)
Building materials Silicone and epoxy
Mechanical endurance 10,000 cycles
Weight (includes bracket) 452 lbs 3ø, 165 lbs 1ø
Product Warranty 10 years

Contruction

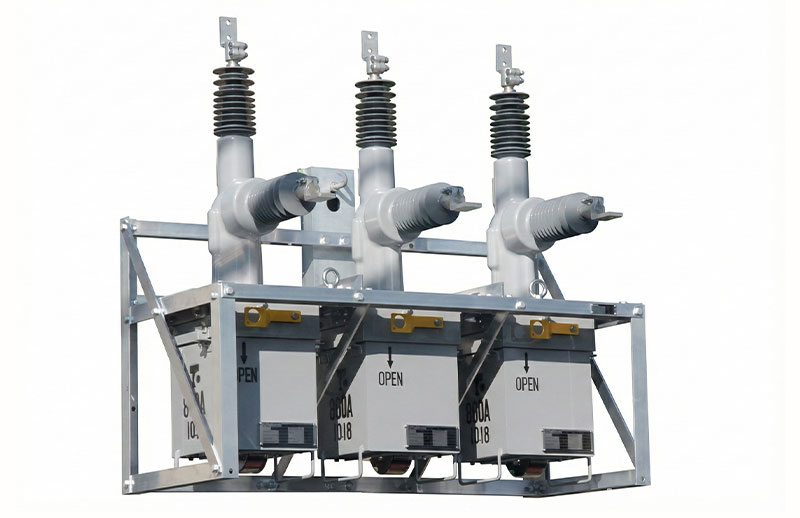

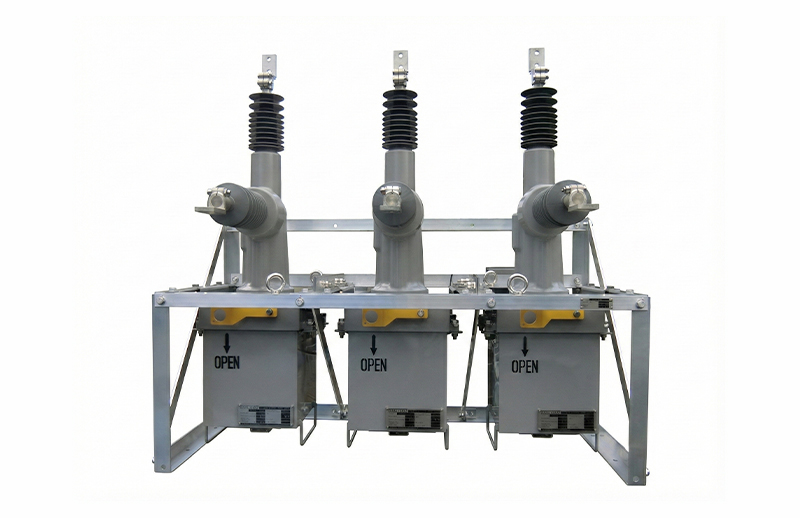

Triple-Single Phase

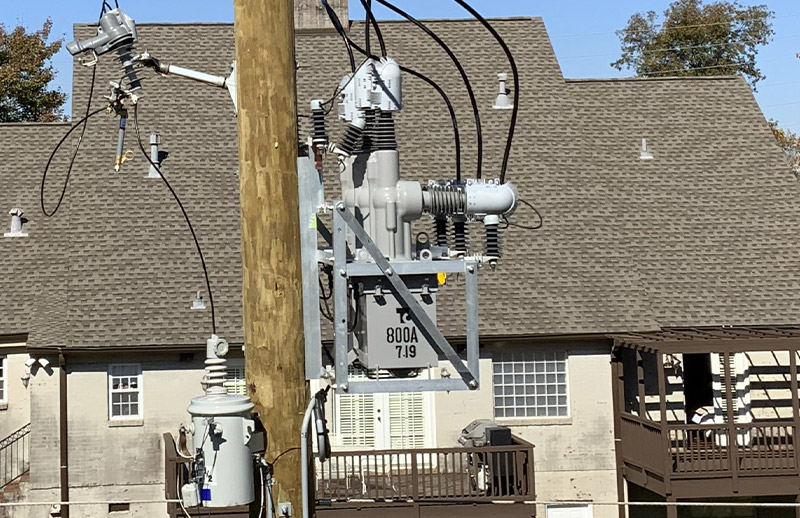

Single Phase

Options

  • 2- or 4-hole NEMA pad.
  • Animal / bird guard
  • Transformer for controller power supply
  • Lighting arresters
  • Operation bar for three-phase ganged mechanical operation equipped on operating handles
